Clamshell Buckets with Open Shells for Crane

The reliability of the revolutionary HPXdrive in combination with robust, versatile shells for different tasks in North America. Thanks to the drive system, the movement and closing force of the shells is constant and synchronized, generated by two hollow shafts, which run opposed and have a helix thread, hydraulically driven by a single piston. The HPXdrive is available as standard or heavy duty version.

But no matter the size: There a no hydraulic cylinders required anymore!

A longer life cycle of up to 50% and the integrated self-lubrication as the drive unit runs in a permanent oil bath are also featured by the drive, as well as the compact design, making the HPXdrive resistant to dirt and debris.

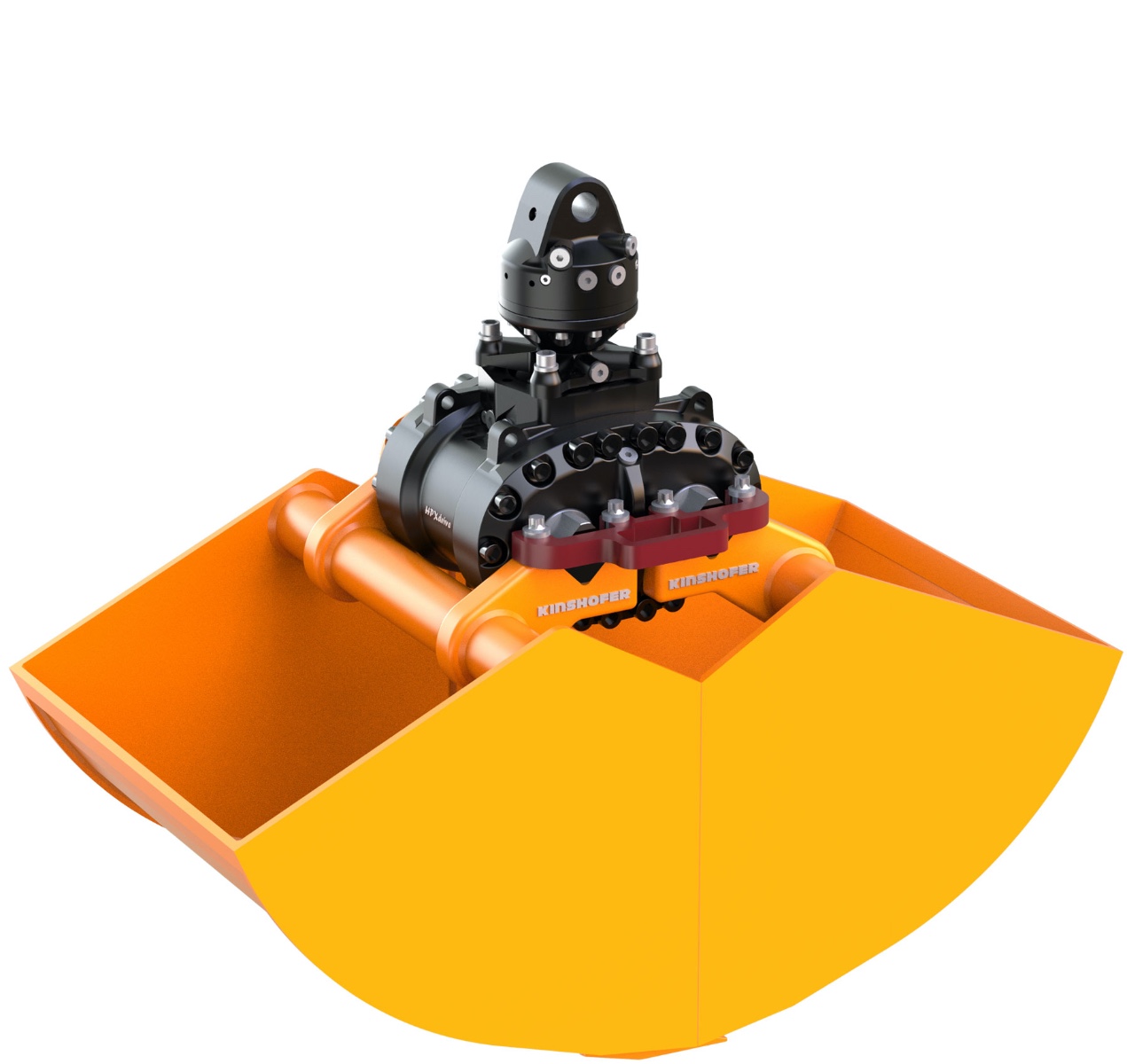

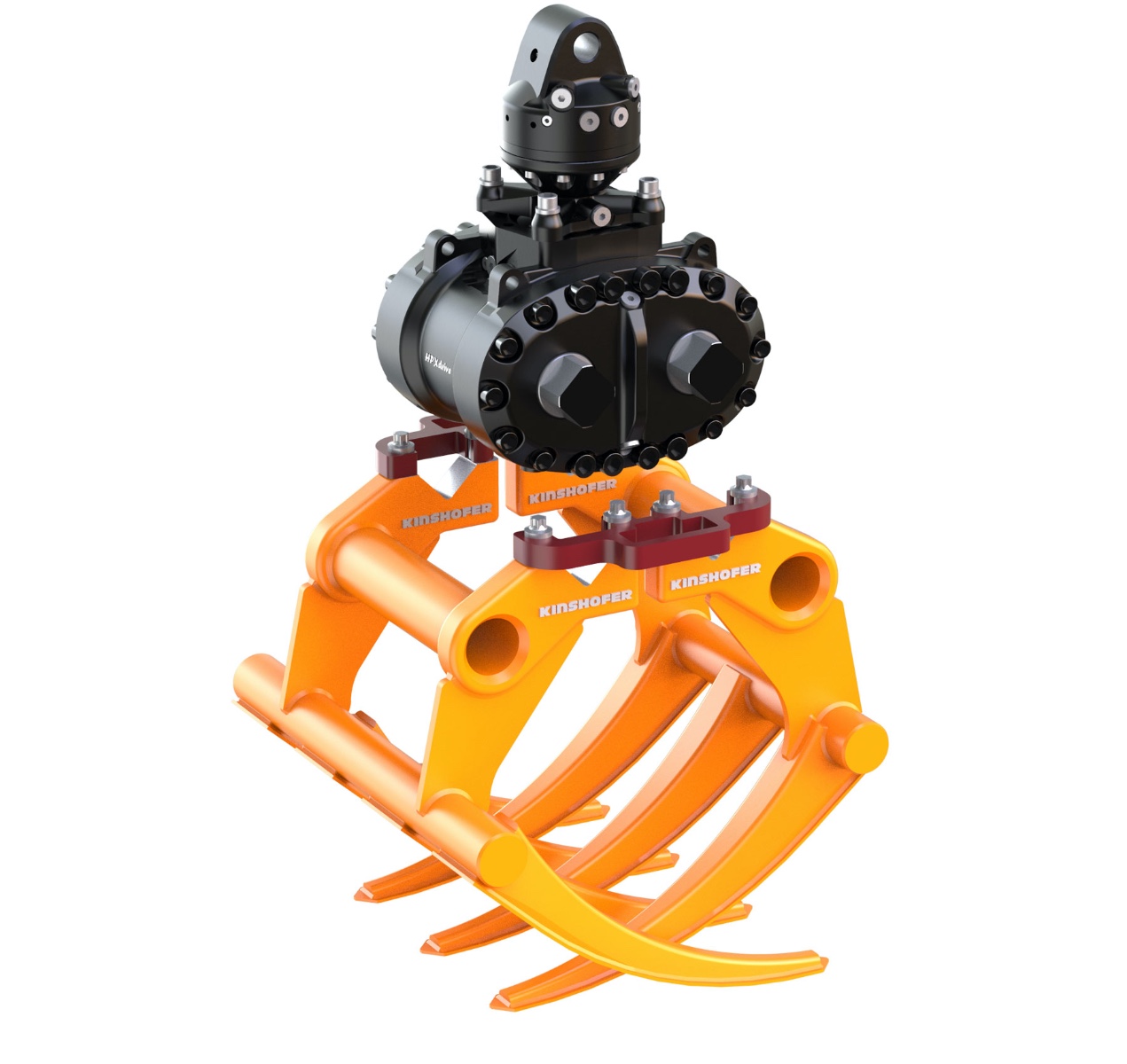

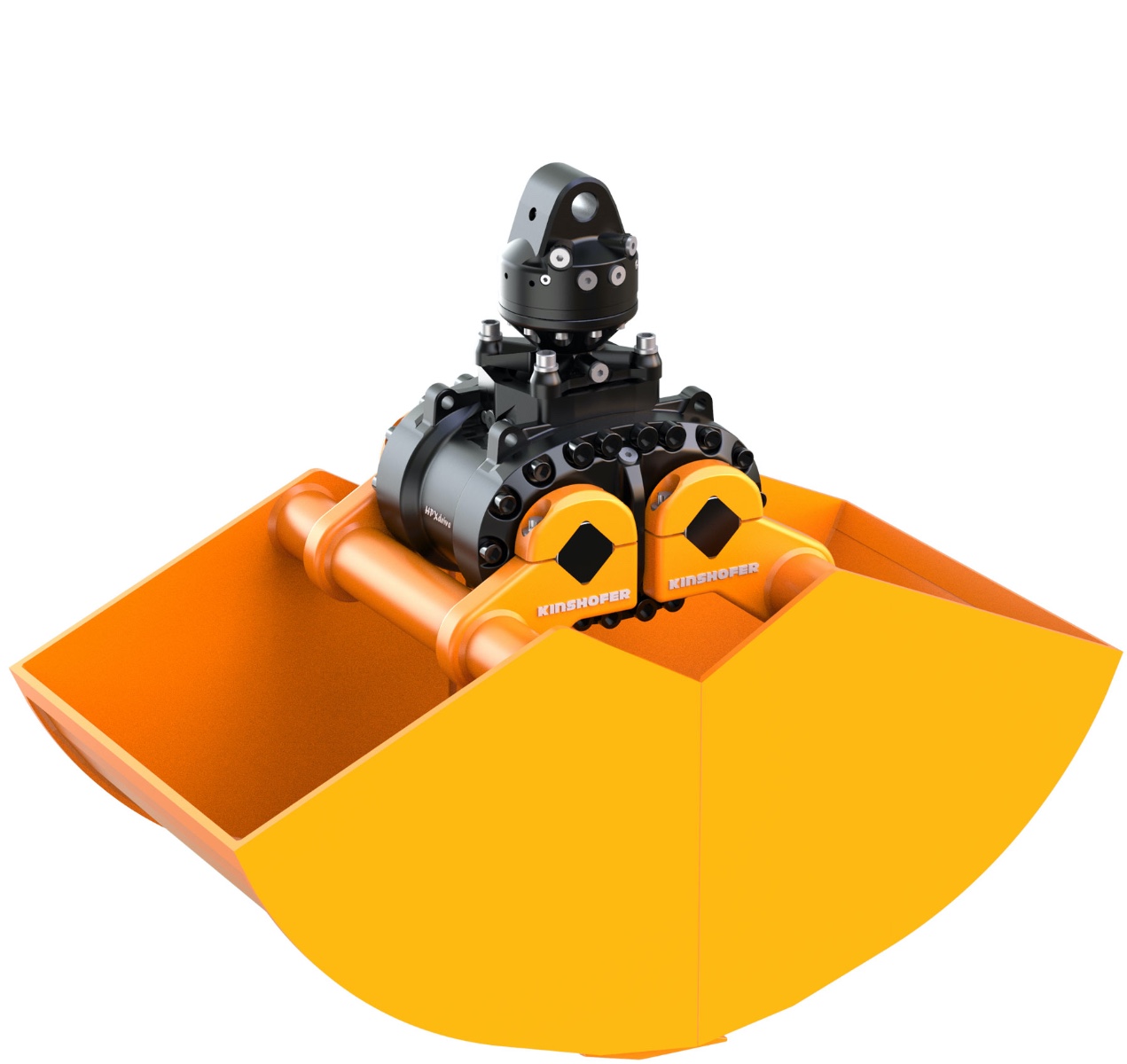

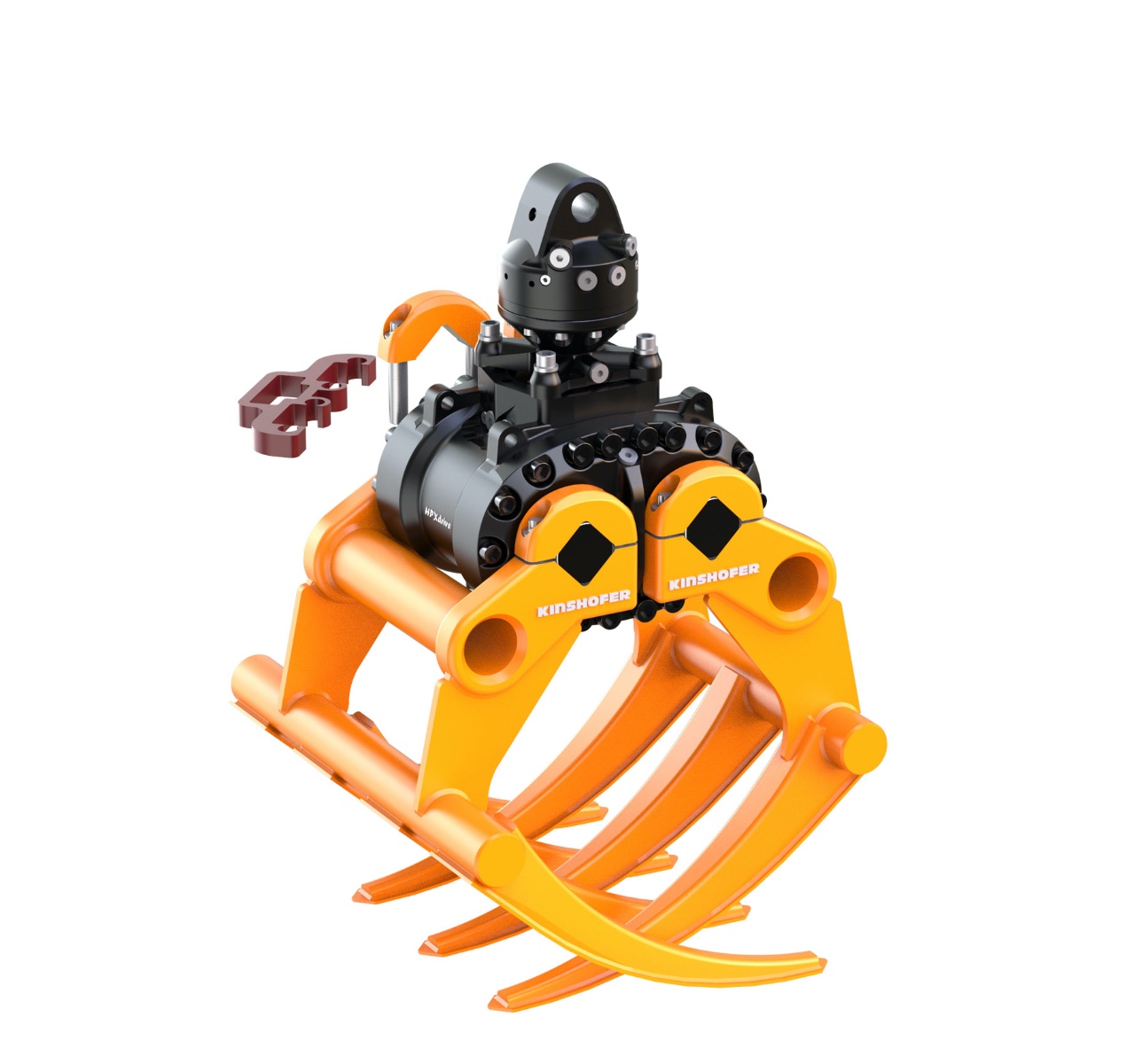

… by different types of available shells that can easily be refitted onto the unit.
The perfect alternative to cylinder-operated grapples that do not only save time and cost, but also facilitate every task.
The open shells of the bucket are ideal for handling and easy digging tasks and allow even the handling of bulky materials.

The Z-version is especially developed for the easy transport on Z-cranes.

This universal tool is available as daily routine or heavy duty version, each featuring the respective HPXdrive and shell exchange system.

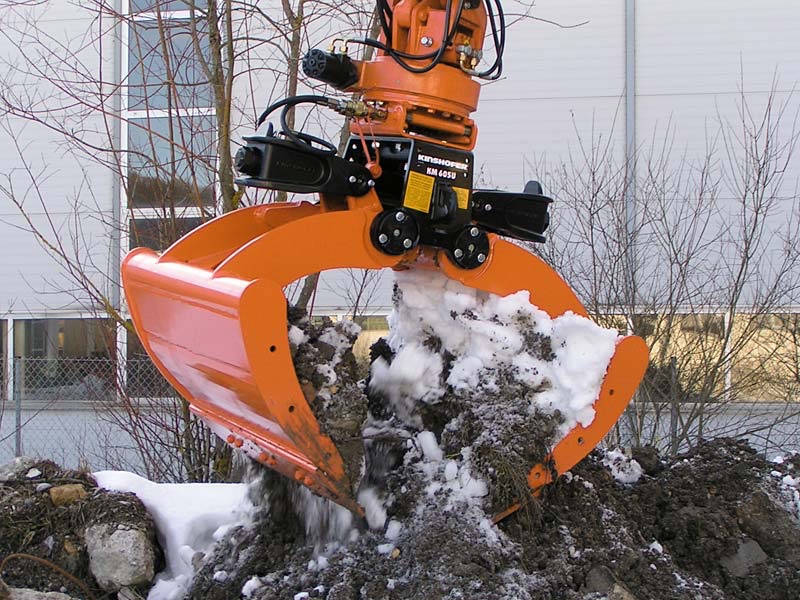

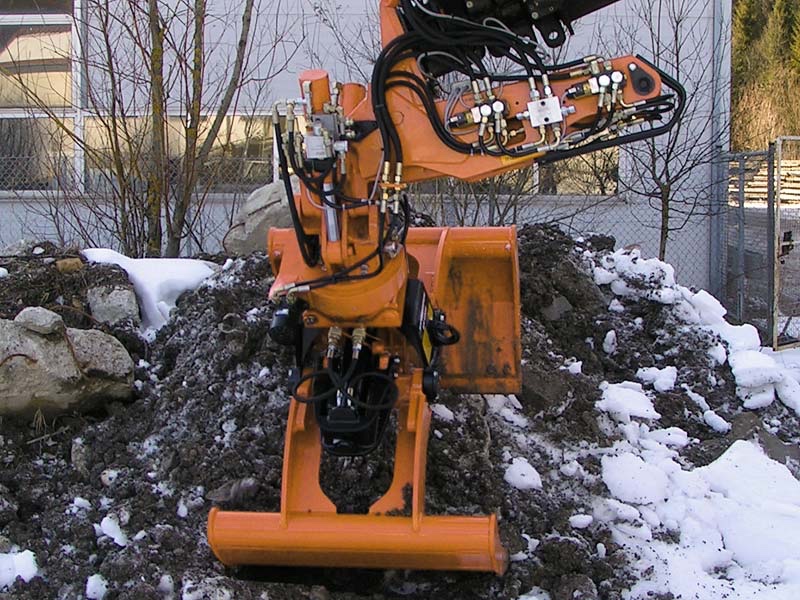

The KM 605U Refuse is a robust universal tool for handling all kinds of refuse material. The open sides of the grapple enable the grab to handle bulk material. The compact design with a horizontal hydraulic cylinder achieves a maximum loading height. Long life is guaranteed due to the use of 500 HB steel in the manufacture of the cutting edges and a generously dimensioned bearing system. Reversible wear plates and welded hooks are delivered by default.

The version KM 605U-Z is the new open clamshell bucket for the use on Z-cranes. It is based on the already proven KM 605-U with horizontal cylinder.

A wide range of accessories, including adapters for rails or different mounting options are available for all clamshell buckets with open shells.

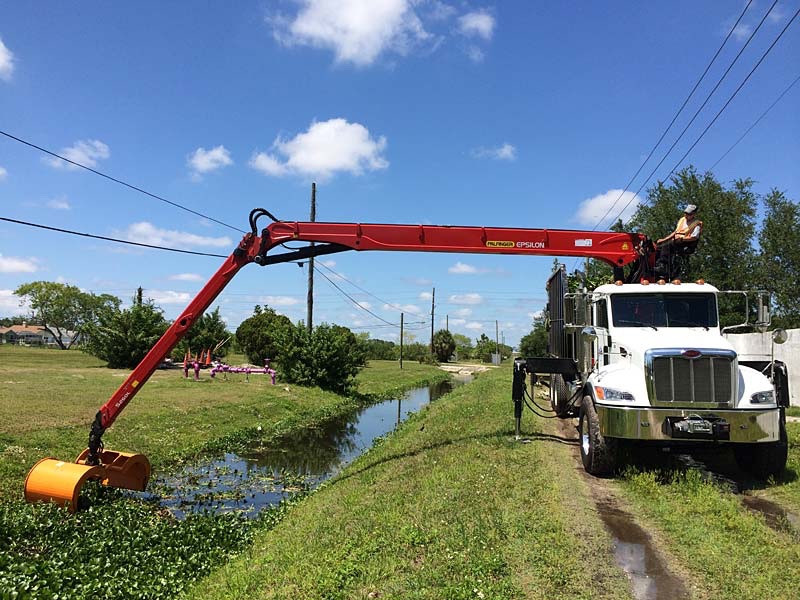

KM 605U HPX Refuse especiall for North America is available with different volumes from 420 to 655 litres / 0.55 to 0.86 c.y. as complete ready-to-fit package: clamshell bucket, HPXdrive Heavy Duty, flange rotator, upper suspension, non-return valve.

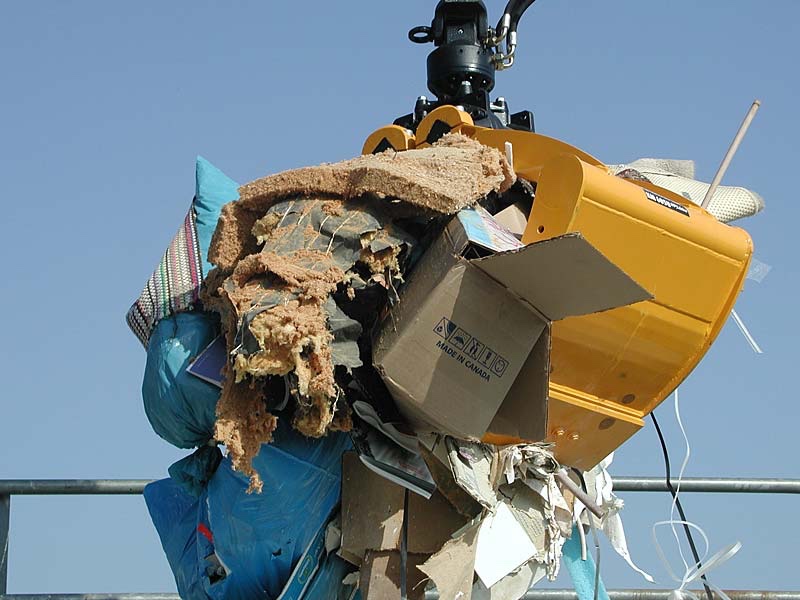

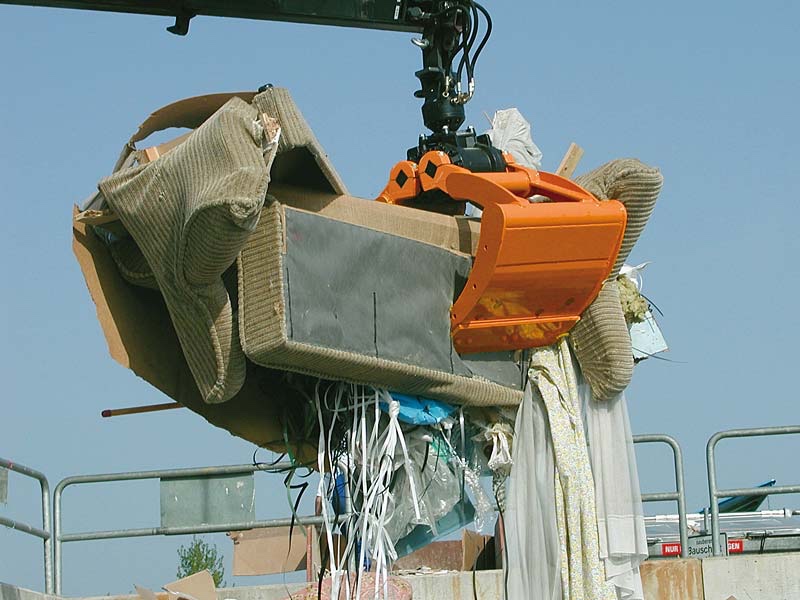

KM 605U HPX is available with different volumes from 300 to 500 litres / 0.39 to 0.65 c.y. as complete ready-to-fit package: clamshell bucket, HPXdrive Heavy Duty, flange rotator, upper suspension, wear plates, weld-on hooks, non-return valve.

KM 605U HPX-Z for Z-cranes is available with different volumes from 400 to 600 litres / 0.52 to 0.79 c.y. as complete ready-to-fit package: clamshell bucket with flap, HPXdrive Heavy Duty, flange rotator, upper suspension, wear plates, weld-on hooks, non-return valve.

All HPX-packages are also available with shaft rotator and reduction link or quick change system.

Optional: bolt-on side plates (not for version KM 605U HPX Refuse).

KM 605U Refuse especially for North America available in volumes 420 to 730 litres / 0.55 to 0.96 c.y. as complete ready-to-fit package: clamshell bucket, rotator, short hoses, upper suspension, cylinder rod protection, pressure relief valve, non-return valve.

KM 605U-Z available in volume 500 litres / 0.65 c.y. as complete ready-to-fit package: clamshell bucket, rotator, short hoses, upper suspension, wear plates, weld-on hooks, non-return valve. The single clamshell bucket is also available, as well as bolt-on side plates as an option.
